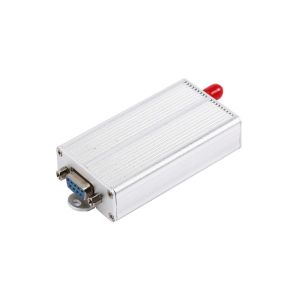

1W Wireless Radio Modem LS-U1000D , UHF Wireless Data Transmitter

Introduction:

LS-U1000D is a UHF band 1000mW data module. With elegant and easy-to-fix aluminum casing, DB9 port, it is convenient for you to connect with PC and some other meters or devices. Easy to install, no program needed, no communication fee.

Parameter:

• Power output: 5V DC
• RF power: 1W default or 500mW
• Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one
• Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable
• Frequency band: 433, 450, 470 or others
• Interface: RS-232/RS-485/TTL/USB
• Communication mode: Half-duplex
• Channel: 8(default), 16/32(customized)
• Receive current: <45mA (TTL connect)
• Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)
• Transmitting current: <500mA
• RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)
• Size: 80*45*20mm (without antenna port)

Application:

• Queuing machine wireless control
• Automatic meter reading
• LED display/ LED sign
• PTZ wireless Monitoring
• Factory automation
• Handhold device
• Irrigation system
• Data telemetry
• Robotics control
• Home automation

Pin Definition (9 pin)
