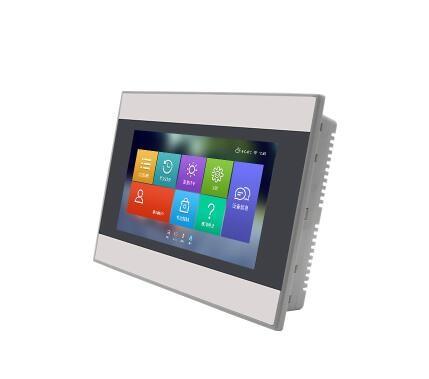

China HMI 4.3 inch Touch Screen from China.
There are several advantages to using a 4.3 inch HMI manufactured
in China:
1. Cost-effective: China is known for its low-cost manufacturing, and this applies to
4.3 inch HMIs as well. We can produce HMIs at a lower cost than
many other countries, making them a cost-effective solution for
small machines or systems.
2. Wide range of options: There are many Chinese manufacturers that produce 4.3 inch HMIs,
offering a wide range of options in terms of features,
specifications, and functions. This gives you more choices and
flexibility in selecting the right HMI for your needs.
3. Quality control: we have implemented rigorous quality control processes to ensure
that their products meet international standards and customer
requirements. This includes testing, inspection, and certification
of the products before they are shipped.
4. Customization: We are often willing to work with customers to customize their
products to meet specific requirements. This can include changes to
the hardware, software, or user interface of the HMI.
5. Technical support: We often provide technical support to their customers, such as
online resources, user manuals, and customer service. This can be
helpful for customers who need assistance with installation,
programming, or troubleshooting.
Overall, the advantages of using a 4.3 inch HMI manufactured in
China include cost-effectiveness, a wide range of options, quality
control, customization, and technical support.
Parameters:
| Type | Parameter | Value | |
Display | Screen size: | 4.3" TFT LCD | |
| Resolution: | 480*272 | |
| Brightness(cd/㎡): | 400 | |
| Contrast Ratio: | 500:1 | |
| Backlight Type : | LED | |
| Backlight Life Time : | >30,000 hrs. | |
| Colors : | 16.7M | |
| LCD Viewing Angle: | (T/B/L/R) : 80/80/80/80 | |
| Touch screen | Touch Panel Type : | 4-wire Resistive Type | |
| Touch Panel Accuracy : | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash : | 128 MB | |
| RAM : | 64 MB | |
| Processor | | ARM Cortex-A7 1GHz | |
| Port | USB Host I/O Port: | USB 2.0 x 1 | |
| RS232: | COM 1 | |
| RS485: | COM2: 2W/4W, COM3: 2W | |
| Ethernet: | 10/100Mbps self-adaption | |
| 4G remote: | Not support | |
| RTC | | Built-in real-time clock | |
| Power | Input Voltage : | 9-36±10% VDC | |
| Rated power: | 10W(420mA@24VDC) | |
| Power Isolation : | Built-in | |
| Voltage Resistance : | 500VAC (1 min.) | |
| Insulation Resistance : | Exceed 50MΩ @ 500VDC | |
| Dimension | Vibration Endurance : | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| Dimension : | 128*102*36mm | |
| Enclosure : | Engineering Plastic | |
| Panel Cutout : | 120*94 mm | |
| Mounting : | Panel mounting | |
| Weight Approx. : | Around 0.5 kg | |
| Working Condition | Protection Structure : | IP65 Compliant Front Panel, IP20 Compliant Back Panel | |
| Storage Temperature : | -20°~60°C (-4° ~ 140°F) | |
| Operating Temperature : | 0° ~ 50°C (32° ~ 122°F) | |
| Relative Humidity : | 10% ~ 90% (non-condensing) | |
| Certificate | CE: | Complaint | |
| Software | PC software: | Smart manager PRO V2.05 or higher version | |
