Input

Input signal: 4-20mA; 0-20mA

Distribution voltage: 24V, (maximum drive current 30mA)

Input impedance: ≤50Ω

Output

Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V

Output load resistance: RL ≤ 500Ω (when the output is a current signal); RL ≥ 10KΩ (when the output is a voltage signal)

Basic parameters

Power supply: DC24V, ±10%

Current consumption: ≤50mA (one input and one output, 24V power supply, power distribution input, 20mA output); ≤70mA (one input and two output, 24V power supply, power distribution input, 20mA output); ≤100mA (two in two out , 24V power supply, power distribution input, 20mA output)

Basic accuracy: 0.1% F.S.

Temperature drift: 0.005% F.S. / degree (-20 degrees ~ +55 degrees)

Response time: ≤10mS (0-90%) (TYP)

Insulation strength: 1500V AC / 1min (between input, output, and power)

Insulation resistance: ≥100MΩ (between input, output, and power)

Operating temperature range: -20~+55 degrees

Electromagnetic compatibility: in accordance with GB/T 18268 (IEC61326-1)

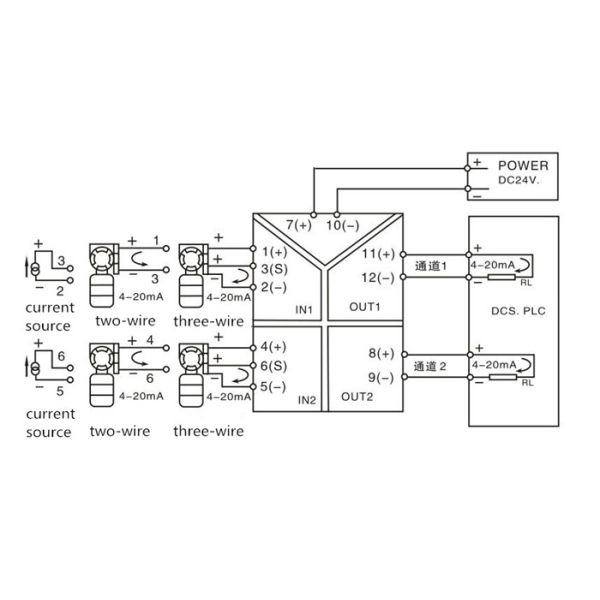

Applicable field devices: two-wire system, three-wire transmitter; current source.
